Additional information
| Marken | Somas |
|---|

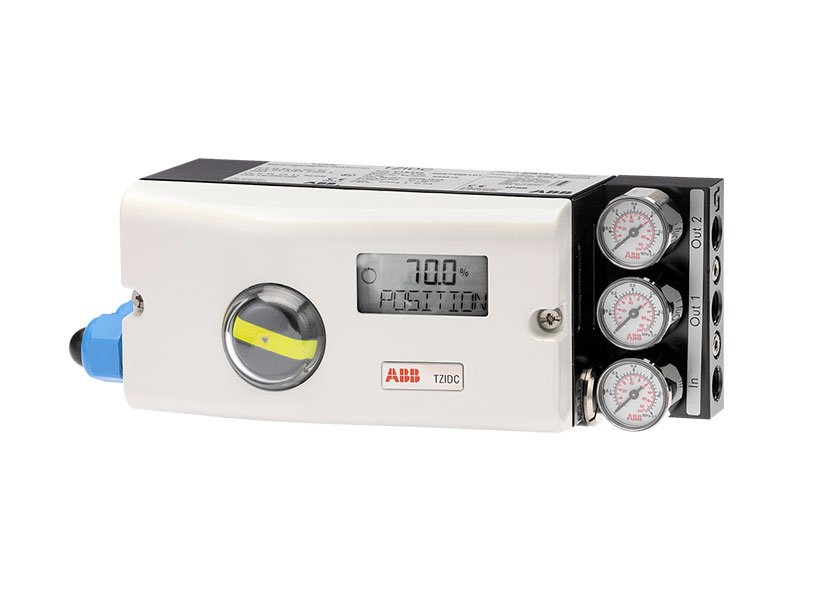

Analog positioner
Related products
Compact electric actuator with integrated control unit
Type CM (Schiebel)
“The Schiebel electric actuator series CM combines a compact and lightweight design with an integrated control unit.
The built-in control unit can be extended simply and easily by means of software enablements.
Due to the high power density of the motor, the CM series has very compact dimensions.
In addition, these actuators have a lower weight due to the chosen material.
Alternatively, it is possible to use special materials (e.g. bronze, steel).
Due to its high protection class, the electric actuator CM can be used virtually anywhere.”
Pneumatic rack-and-pinion actuator
Type Typ ADA / ASR (Actreg)
Actreg is a manufacturer of double piston part-turn actuators in aluminium housings with torques of up to 6,500 Nm.
The pneumatic rack-and-pinion actuator from Actreg offers reliable automation for valves with 90° swivel movement.
Designed and produced to withstand most applications and environmental conditions, the high precision in terms of design and quality provides long and safe operating performance.
In order to support its customers in the safe control of their processes, ACTREG relies on strict quality assurance thanks to state-of-the-art processing and testing facilities.
Limit switch box
Type i-box (Eurotec)
Compact, simple and efficient.
The i-box is produced by the quality manufacturer Eurotec in Germany. Thanks to its sophisticated mounting system, it can be quickly and easily installed directly on the actuator and is therefore extremely space-saving. Despite its very compact design, it offers space for 1 to 2 mechanical toggle switches or inductive sensors in the V3 design.
Its large OPEN-CLOSED display is still visible even from a distance. Alternatively, it can be equipped to display T or L-bores. The standard version is suitable for an 80x30 mm actuator bore pattern with shaft heights of 20 and 30 mm. The height and width adjustable stainless steel bracket IMBHV is required for other bore patterns. The i-box housing achieves protection classes IP66 and IP67 according to DIN EN 60529.
Electric part-turn actuator
(J+J)
"The J4C series is one of the leading electric part-turn actuators and offers many possibilities with its fully digital electronics. The actuator can be configurated precisely to your needs. The integrated RBG status LED always shows the actual operating state by means of different colours and flashing cycles.
In addition to brushless motors, the robust plastic housing, moreover J+J actuators are very user-friendly.
All model sizes from 20 Nm to 300 Nm are designed for input voltages range from 24 V to 240 V AC/DC. They are also optionally available for an input voltage of 12 V AC/DC."
