Find the right ceramic valve for your requirements!

Our valve finder will help you find the right ceramic valve for your requirements. Searched and not found? Our range goes much further. For special products and individual advice, contact us directly.

`

Filter the results

Showing all 3 results

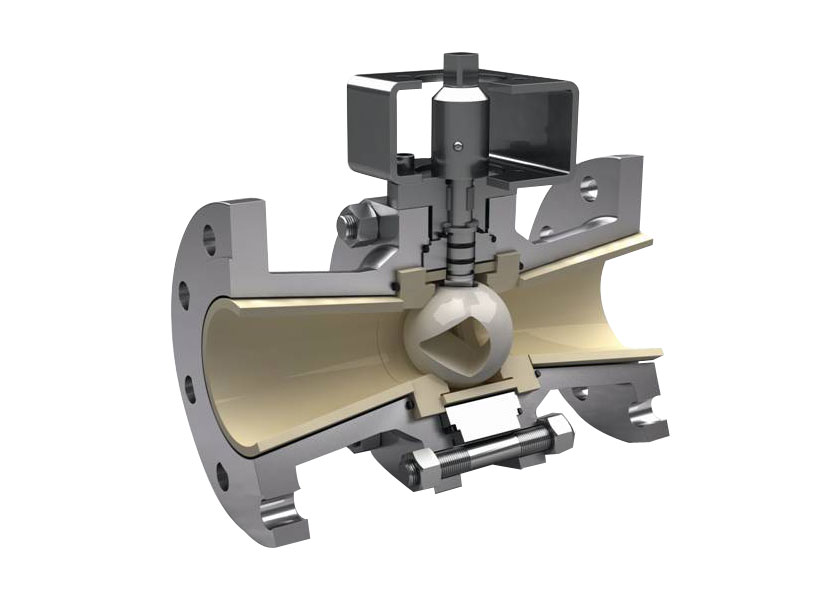

    CeraValve ceramic lined ball valve

    Type KSV, KZT, KST, KST-HT, KAT, KGT (Cera System)
    Pressure: PN 10 / 16 / 25 / 40
    Nominal size: DN 15 - 300

    Cera Valve offers wear and corrosion-resistant ceramic lined ball valves for on/off and control functions.

    The use of ceramic-lined valves make sense wherever standard valves reach their limits (abrasion, corrosion, temperature and pressure).

    A large selection of variuos ceramic materials allows for solutions for almost all industrial sectors. Special adaptations and special applications are also solved in close cooperation with our customers.

    CeraValve ceramic lined sliding disc valve

    Type SSC, SVC, SDL (Cera System)
    Pressure: PN 10 / 16 / 25 / 40
    Nominal size: DN 2- 50

    Cera Valve offers wear and corrosion-resistant sliding disc valves for on/off and control functions.

    The medium flows exclusively in ceramic with this design. It is therefore suitable for highly corrosive media.

    Other advantages: very good control of small amounts of media containing solids and completely cavity free.
    A large selection of ceramic materials allows for solutions for almost all industrial sectors.

    Special adaptations and special applications are also solved in close cooperation with our customers.

    The ceramic lined sliding disc valve is used in waste incineration plants:
    – Dosing of HCI washing water (pre-washer)
    – Dosing of limewash to the absorber (pH regulation, desulfurisation)
    and in the chemical industry as an – Alternative to PTFE / PFA lined valves if a medium is abrasive and / or prone to diffusion.
    – Alternative to valves made of special materials. (e.g. Hastelloy, titanium, etc.)

    CeraValve partially ceramic lined ball valve

    Type Type BR26 (Cera System)
    Pressure: PN 10 / 16
    Nominal size: DN 15 - 100

    The ball valve BR 26 CERA is a stainless steel ball valve for on/off functions only with ceramic seats and a ceramic ball for use in less abrasive and low corrosive applications.

    The basic principle is based on the “floating ball” design. The seats are pressed against the ball by O-rings. This valve can be supplied with a manual handle with a pneumatic or electric actuator.
