Valves
>
Safety valve

Find the right safety valve for your requirements!

Our valve finder will help you find the right safety valve for your requirements. Searched and not found? Our range goes much further. For special products and individual advice, please contact us directly.

Filter the results

Showing 1–6 of 11 results

    Air valve

    Type TWIN Air (ERHARD)
    Pressure: '10 / 16 / 25 / 40
    Nominal size: 50 - 200
    The TWIN AIR air valve from Erhard regulates the automatic venting of water pipes in plants, buildings and shafts and guarantees automatic venting of the pipe during filling, operational venting and emptying processes. It is characterised by a compact design and low weight as well as a large cross-section, which enables ultra-high venting speeds. The operating principle: Valve for automatic air release and air admission via a lever and with patented self-cleaning at each switching operation. The valve is enamelled on the inside and has an epoxy coating on the outside. It is also available for seawater applications.
    Add Bookmark

    ANSI safet relief valve

    Type 1415 (Tosaca)
    Pressure: ANSI 150-2500
    Nominal size: 1/2" - 20"

    The flanged safety valve according to ANSI is suitable for the low pressure and high pressure range. The valve is very versatile in use.

    With options in a wide range of materials and designs, the Tosaca safety valve covers an extremely wide range of requirements.

    Because of a big stock of different kind of valve bodys and many different trims, nothing stands in the way of quick deliveries. The valves can also be equipped with other additional options. Various approvals ensure that these valves are also used in very demanding industries.

    Add Bookmark

    Ball check valve

    (ERHARD)
    Pressure: PN10
    Nominal size: 50 - 400
    The Erhard ball check valve offers backflow protection based on the ball check valve operating principle. In the open position, the sealing ball is pushed out of the flow cross-section by the medium. The Erhard ball check valves are particularly suitable for use in the waste water sector where there is a high risk of clogging. Advantages: Erhard ball check valves are resistant to dirt and are extremely maintenance-friendly as the valve works without mechanically moving parts. In addition, the ball check valve has low flow resistance in the open position.
    Add Bookmark

    DIN piston check valve

    Type ZV226 / 336 & ZV227 / 237 (LDM Valves)
    Pressure: PN16-PN40
    Nominal size: DN15 - DN200

    “LDM piston check valves are self-acting valves to prevent unwanted backflows. They are designed for long-term and maintenance-free operation.

    Depending on the version, the valves are closed by the weight or by an additional spring.
    These models are also available in oil and grease-free versions.
    Nominal diameters from DN15 – DN200
    Nominal pressure PN16-PN40
    Temperature range of -10°C to +400°C
    “

    Add Bookmark

    DIN safety relief valve

    Type 1400 DIN (Tosaca)
    Pressure: PN 16,25,40,63,100
    Nominal size: DN 15 - 500
    Flanged safety valve for the low and high pressure range according to DIN. For a very huge range of applications. The Tosaca safety valve DIN 1400 is available in different materials and designs and can therefore cover an extreme range of applications. Because of a big stock of different kind of valve bodys and many different trims, nothing stands in the way of quick deliveries. The valves can also be equipped with other additional options. Various approvals ensure that these valves are also used in very demanding industries.
    Add Bookmark

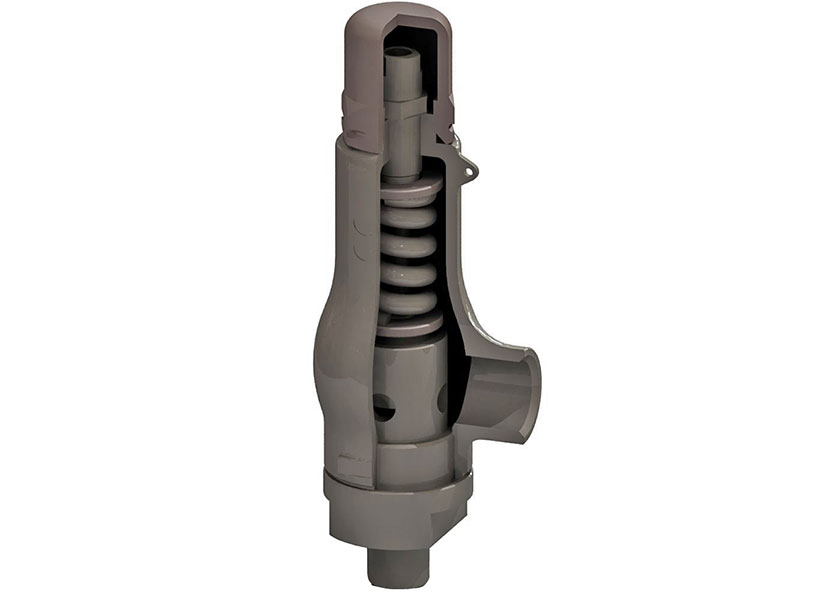

    DIN safety relief valve high pressure

    Type 1216 HP (Tosaca)
    Pressure: PN100
    "Threaded high-pressure safety valve. Readily available for quick delivery and suitable for use in very demanding industries. Available with a female thread connection BSP or NPT and can be used up to a pressure rating of PN 100. The valves can also be equipped with other additional options. Because of a big stock of different kind of valve bodys and many different trims, nothing stands in the way of quick deliveries. Various approvals ensure that these valves are also used in very demanding industries."
    Add Bookmark
