Valves
>
Globe valve

Find the right control valve (globe valve) for your requirement

Our valve finder will help you find the right control valve (globe valve) for your requirements. Searched and not found? Our range goes much further. For special products and individual advice, please contact us directly.

Filter the results

Showing 1–6 of 15 results

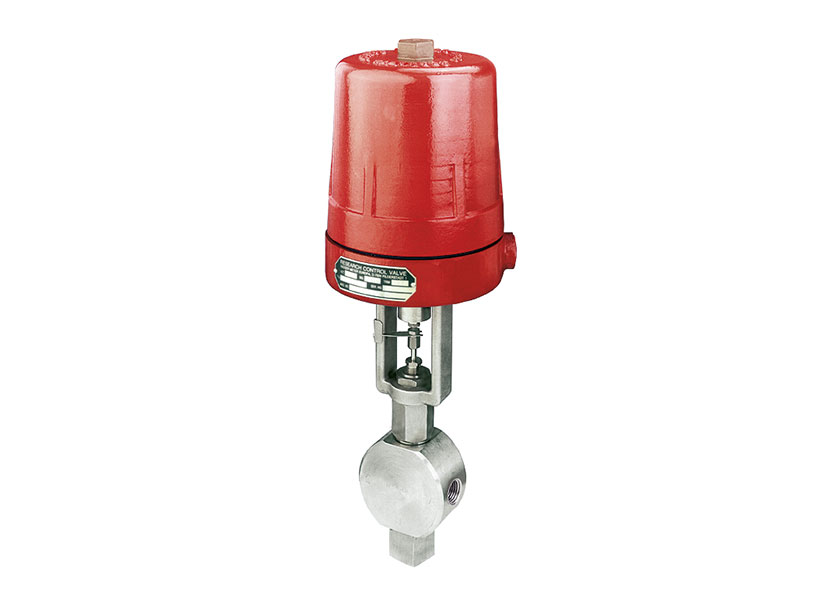

    3-way control valve

    Type RC230 (USA: Typ 564 / 1118) (Badger Meter)
    Pressure: max. 100 bar
    Nominal size: 1/4", 1/2", 3/4", 1"

    The Badger Meter 3-way control valve RC230 stands for very precise control.

    It is particularly suitable for the control of liquids, gases or steam in general industry, research, development and pilot plants.

    Due to its compact size, this 3-way control valve is particularly suitable for the dosing of additives, for sampling and for hydraulic systems with small flow rates. The valve is designed as standard with an NPT female thread.

    Add Bookmark

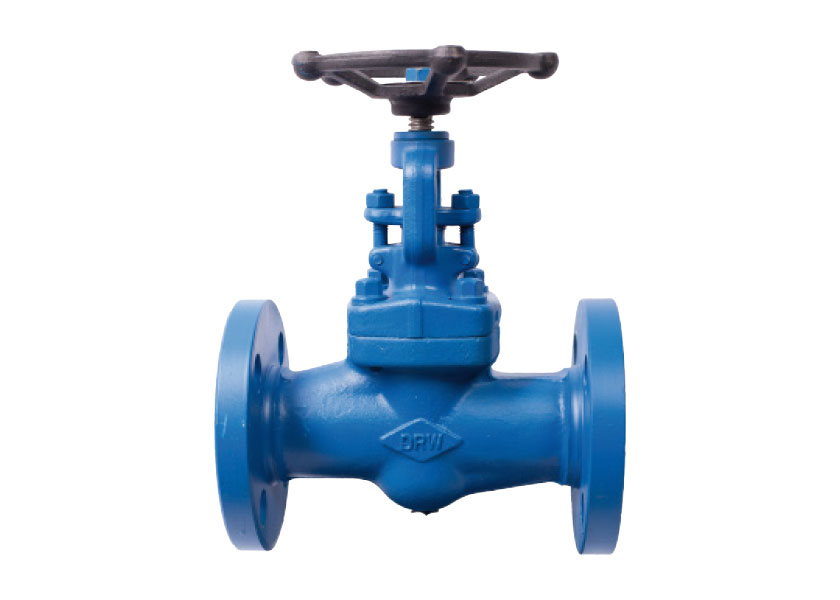

    ANSI on/off and control valve (gland seal / bellows seal)

    Type VG150BB / VG300BB / VG600BB / VG900BB / VG1500BB / VG2500BB / VG900PS / VG1500PS / VG2500PS (JC Valves)
    Pressure: 10 - 172bar
    Nominal size: 2" - 16"
    "JC Valves shut-off and control globe valves with a gland packing seal are made with either a bolted or pressure seal bonnet. Both variants are designed in such a way that the disc and seat can be replaced. The valve has an outside screwed stem in according to ANSI. The shut-off and control globe valves are mainly used in the oil and gas, chemical, petrochemical, energy and mining industries."
    Add Bookmark

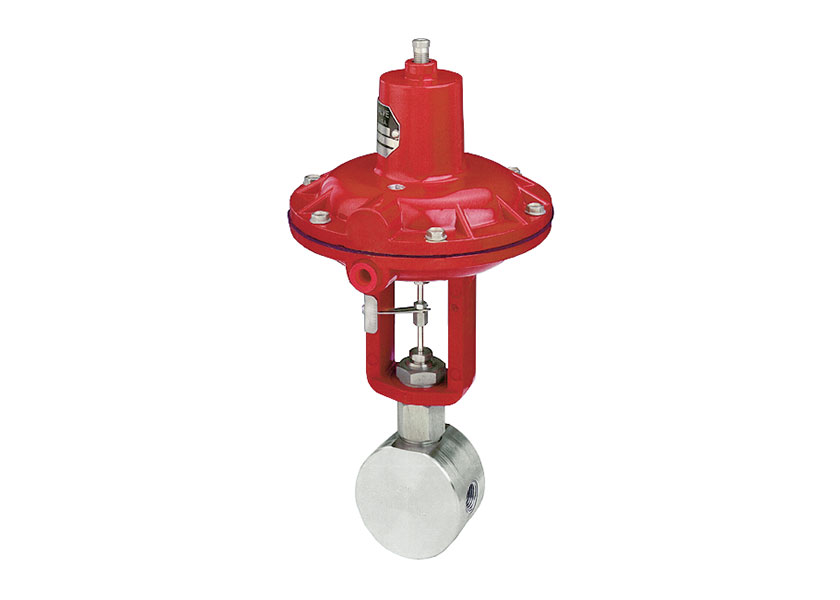

    Barstock control valve

    Type RC250 (Badger Meter)
    Pressure: max.345 bar
    Nominal size: 1/4", 1/2", 3/4", 1"

    The barstock control valve has been specially developed for applications in reverse osmosis plants.

    The barstock control valve type RC250 is suitable for the control of medium to ultra-small flow rates when using liquids, gases or steam in general industry, research, development and pilot plants.

    Due to its compact size, it is particularly suitable for the dosing of additives, for sampling and for hydraulic systems with small flow rates.

    It is designed as standard with an NPT female thread.

    Add Bookmark

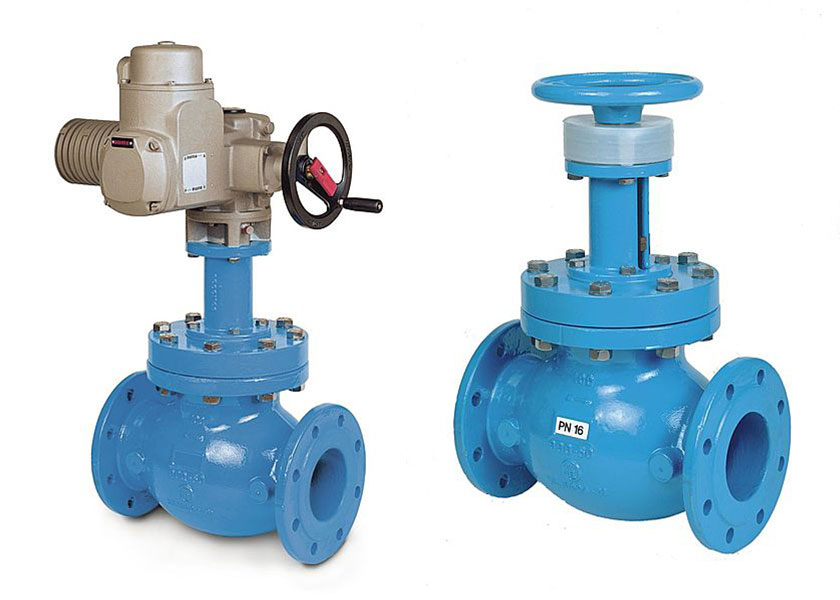

    Control valve

    Type RV (ERHARD)
    Pressure: '16 / 25 / 40
    Nominal size: 50 - 150
    ERHARD control valves type RV are designed for throttling and regulation in water treatment and water distribution plants as well as in hydropower plants. The slotted bush also provides optimum flow behaviour for harmless energy conversion. The control valve is ideally suited for continuous operation during cavitation. The ERHARD control valve is available with a handwheel, electric actuator, hydraulic or pneumatic piston actuator. A straight or angle version is possible.
    Add Bookmark

    Cryogenic and high temperature control valve

    Type RC260 (USA: Typ 884) (Badger Meter)
    Pressure: max.172 bar
    Nominal size: 1/4", 1/2", 3/4", 1"

    The Badger Meter cryogenic control valve has been specially developed for media with t<-50°C.

    It controls liquids, gases or steam in general industry, research, development and pilot plants.

    The bellows design must be used for the inner valves.

    Add Bookmark

    DIN on/off and control globe valve

    (LDM Valves)
    Pressure: PN16-PN40
    Nominal size: DN15 - DN400

    “Shut-off control valve with a pressure balanced cone (from DN200), linear flow characteristics and a position indicator.

    Available with a gland seal or bellows seal.
    The valve can optionally be designed with a control cone or without oil and grease.
    For nominal diameters from DN15 – DN400.
    Can be used in temperature ranges of -60°C to +550°C depending on the choice of material. “

    Add Bookmark
