Find the right sampling valve for your requirements!

Our valve finder will help you find the right sampling valve for your requirements. Searched and not found? Our range goes much further. For special products and individual advice, contact us directly.

`

Filter the results

Showing all 2 results

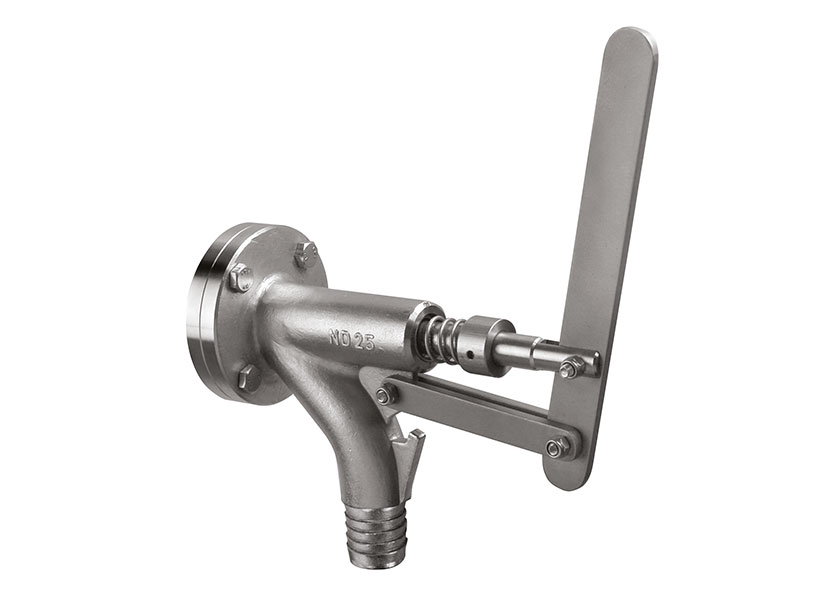

    Sampling valve

    Type TP (Orbinox)
    Pressure: 10
    Nominal size: 25-40

    “The simple sampling valve from Orbinox is designed for taking media samples with a solid content of 0-8% from pipes and tanks.

    The shaft with the closing element of the sampling valve opens into the pipe, avoiding the build-up of the medium through the special sealing seat.
    Purge connections and pneumatic actuators are available as an option.”

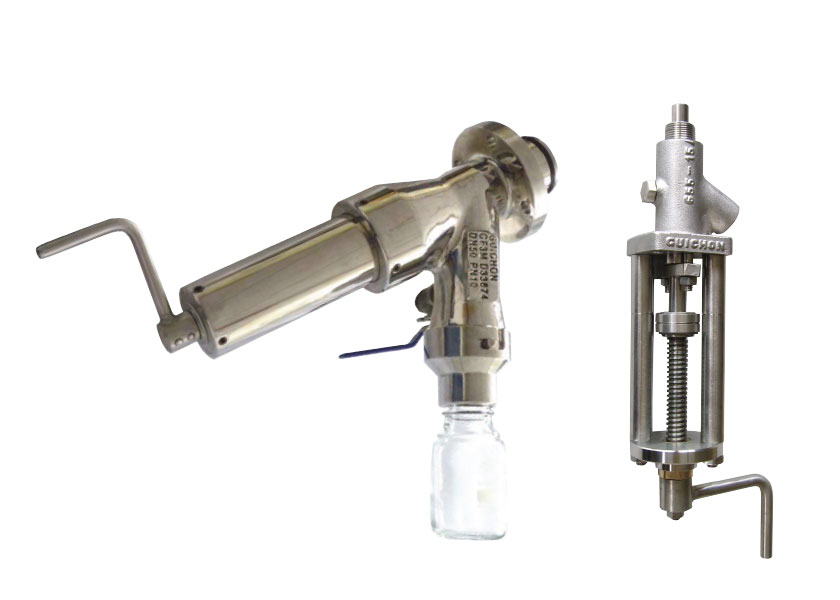

    Sampling valve for pharmaceutical applications

    Type 616M/ 655M (Guichon)
    Pressure: PN 10
    Nominal size: DN 50

    Das Probenahmeventil 616M von Guicon ist speziell für die Anwendung im Pharmabereich konzipiert.

    Die Armatur ist totraumfrei, hat innen und außen polierte Oberflächen bzw. verfügt über einen Pot, um Produktproben direkt entnehmen zu können.
